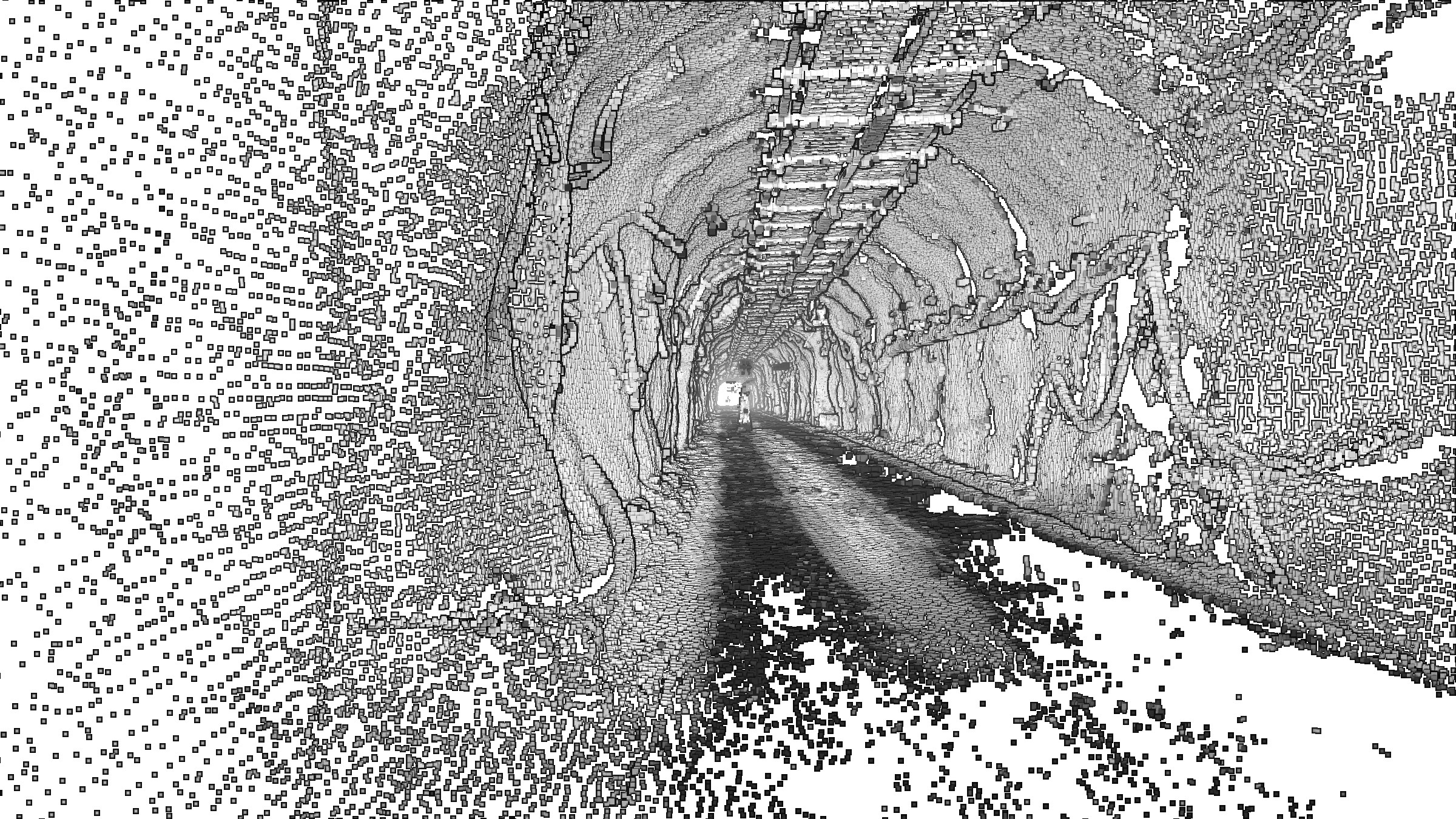

El Teniente, Chile · inside a production drift: cable tray, services and rock walls in one model fused from 44 scans registered without GPS · Showcase
El Teniente · Chile · Underground
El Teniente underground study
44 robot-captured laser scans, delivered as raw text: no GPS, no colour, nothing aligned. Registered to each other and fused into one model of two kilometres of production tunnels.
Showcase: GroundMap processing of public survey data. No affiliation with the mine operator or the dataset authors.
- Laser scans registered into one model, with no GPS
- 44
- Overlapping surface registered within 1 cm
- 98.7%
- Scan pairs fitted more closely than by the dataset's published poses; the other 25 as closely, within 1 mm
- 153of 178
The study
Raw text files,
one mine
Forty-four laser scans from a robot, each in its own frame: no GPS, no colour, nothing aligned.
Challenge
Underground there is no GPS. The dataset arrives as 44 laser scans in raw text, each in its own scanner's frame, with no colour. Chained one scan to the next, small errors build: over two kilometres the same scans miss their loop closures by up to 1.43 m.
Approach
Each scan registered to its neighbours, then all 44 solved together from every overlapping pair at once, so no single pair can bend the network. Fused on a 2 cm grid with a per-point record of how many scans saw the surface and how closely they agree. One 30 m drift coloured from the robot's camera, with moving people and vehicles carved out.
Outcome

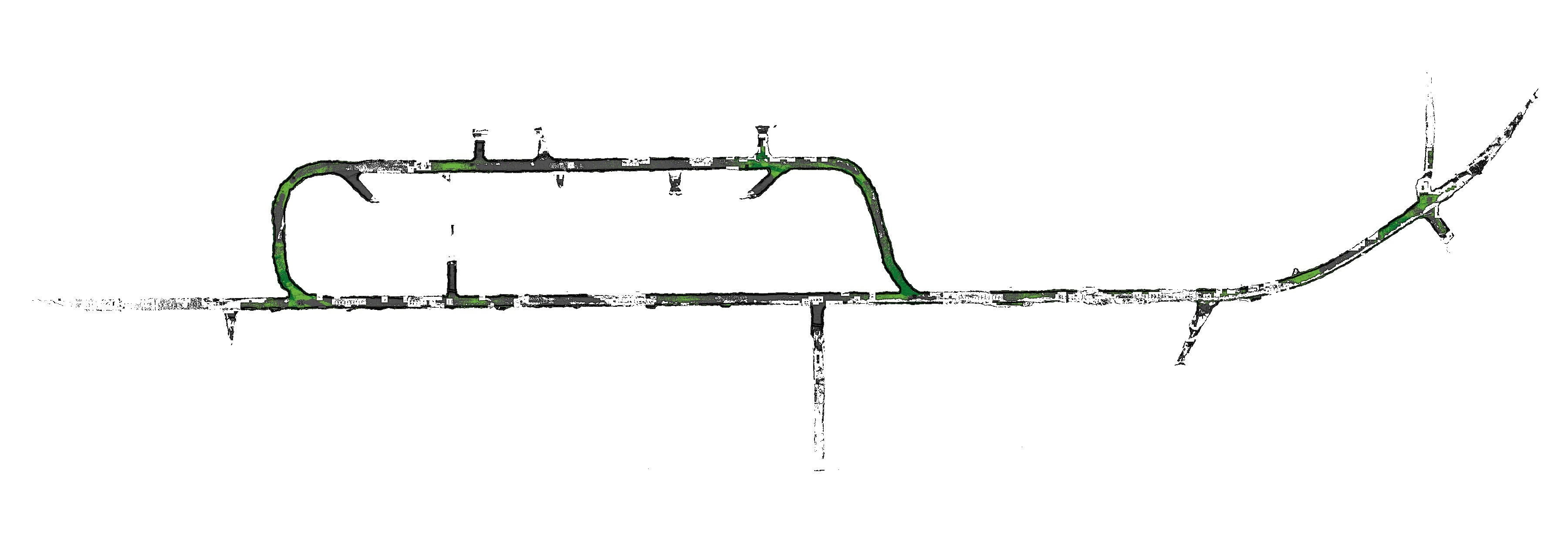

One cohesive model of the production level: 44 million points on a 2 cm grid, 34 % of the surface confirmed by two or more scans. The joint solution fits 153 of 178 overlapping scan pairs more closely than the dataset's own published poses, and the other 25 as closely, to within 1 mm. Across the mine it agrees with those poses to a median 3.8 cm.
Laser and colour
One drift,
two ways
The fused laser model of a 30 m drift, beside the same drift coloured from the robot's camera.
Stated limits
- The figures are registration agreement between scans, not absolute accuracy against control: the dataset has no survey control.
- Colour from the robot's camera covers one 30 m drift; elsewhere the model shows laser intensity.
- The camera looks forward and down, so roofs and upper walls next to the robot carry no colour.
- In the web view the roof is cut 2 m above the floor so the tunnels can be seen from above.
